Zada Tech Fiat 500 Abarth Round Circular Multi Function Gauge Display with sensors
Fiat 500 Abarth round circular multi function gauge display. Replaces your original analog boost gauge with a round screen and retains the OEM look. The new design of the gauges resembles the original analog gauge with more functionalities.
Part of Zada Tech's round circular screen series, this complete kit comes with some of the most popular sensors.
The car's original boost gauge can be sent to us for integration of the screen. We can also source a used and clean boost gauge for you to perform the integration.
Features:
- Abarth logo on start up.
- Smooth graphics with original design.
- Peak value hold with reset function with joystick.
- Peak value setting with joystick. Middle of the gauge turns red when a peak value is reached as a warning.
- Screen dimming with main headlights.

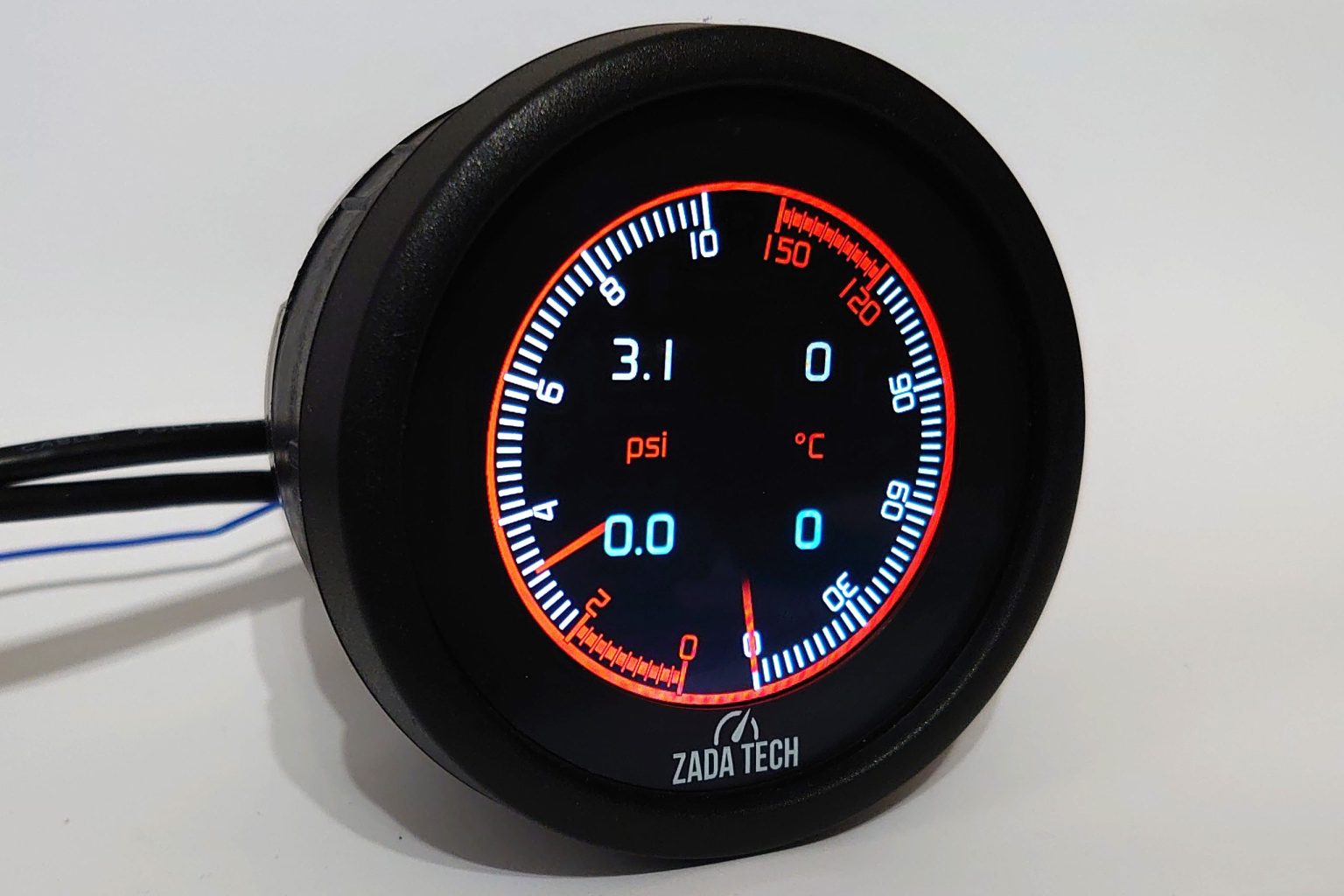

- Boost gauge, oil pressure gauge, oil temperature gauge, volts gauge and a dual oil pressure & oil temperature gauge.

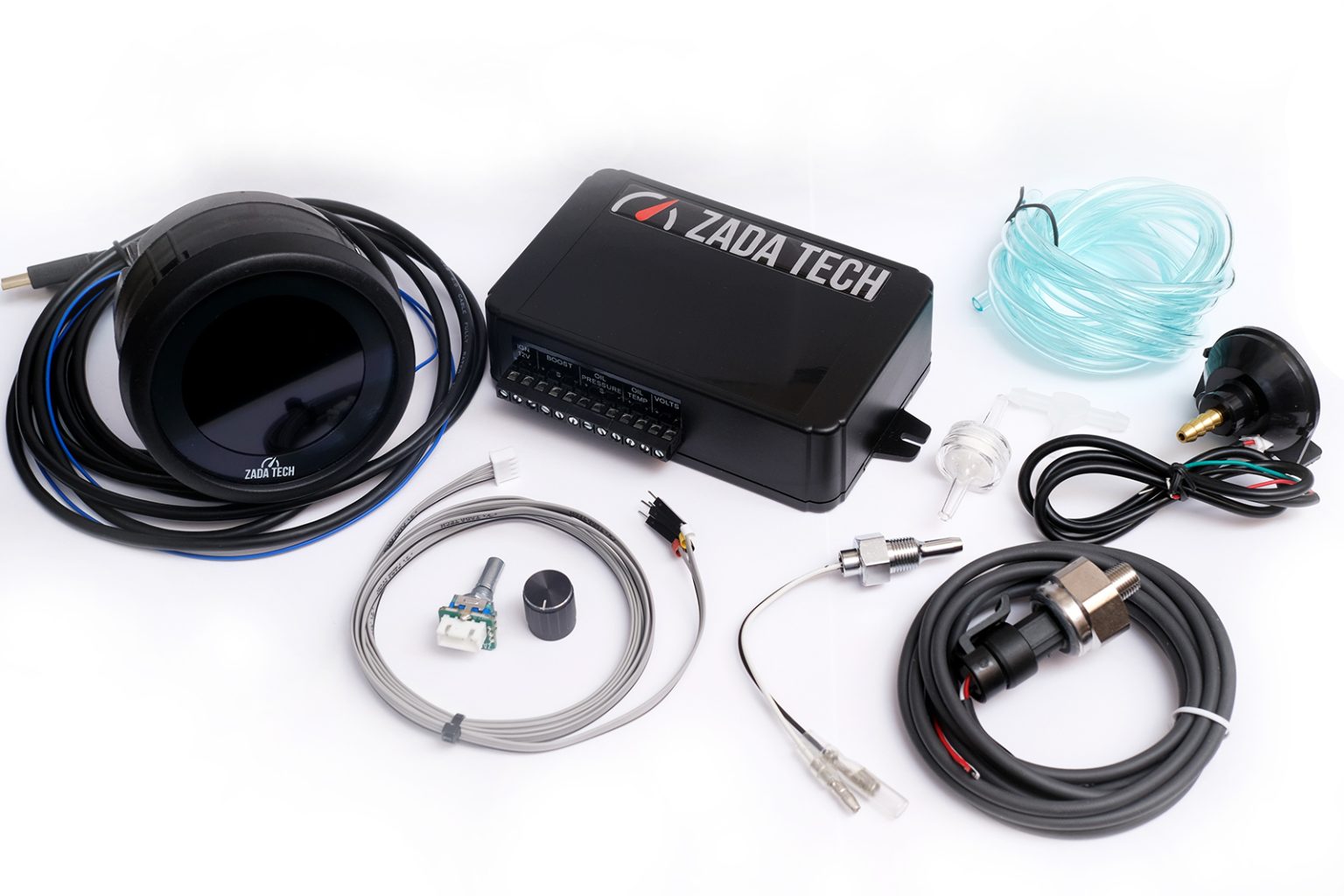

The kit includes the following:
- 2.1" IPS round LCD and the controller box including the joystick.

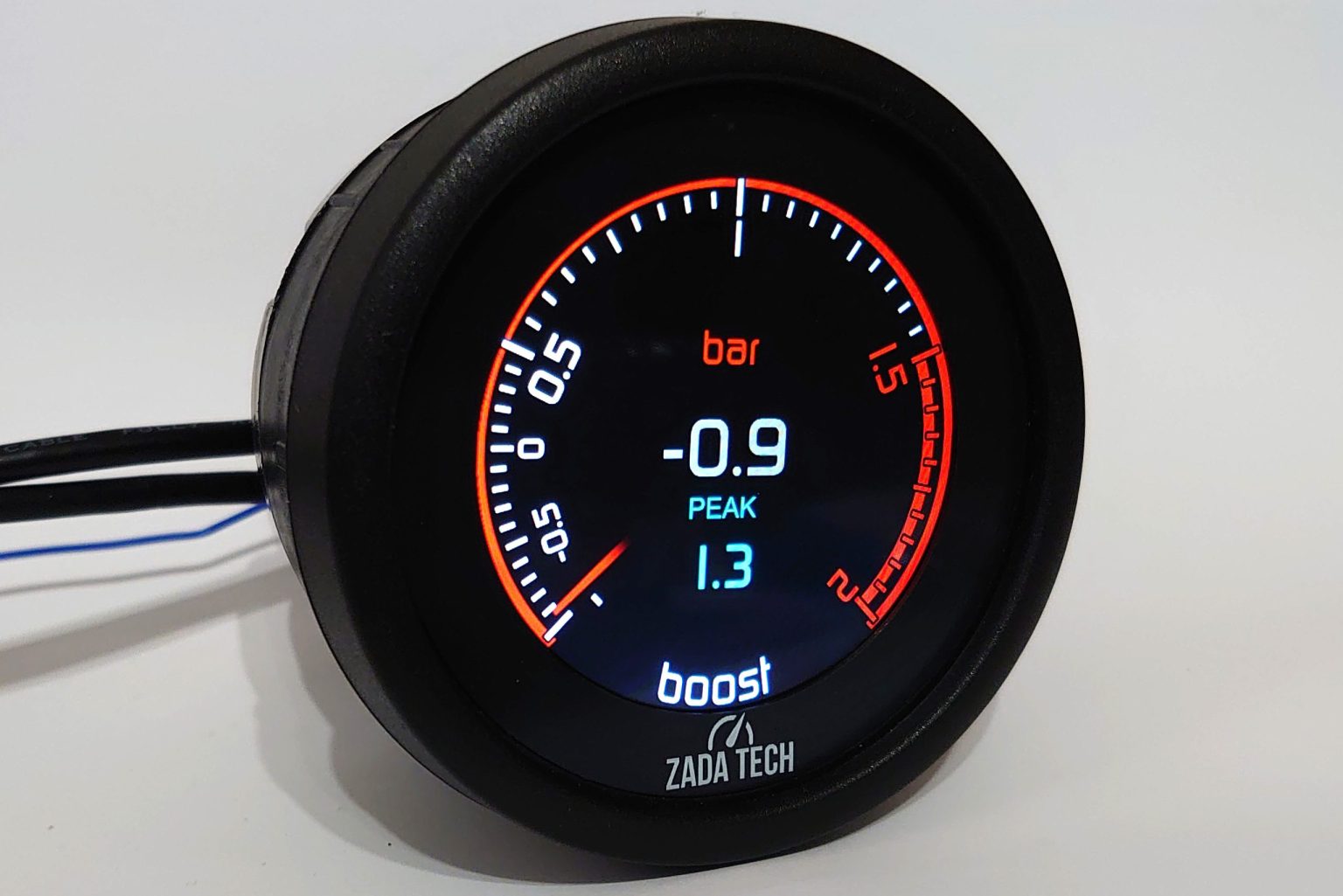

- Boost sensor (PSI or BAR)
High quality precise 3 wire boost pressure sensor
Pressure range (-30 In.Hg. to 44 PSI / -1 Bar to 3 Bar)
Comes complete with a hose connection boost pipe, filter and a t-piece
Made In JAPAN!
- Oil pressure sensor (PSI or BAR)
High quality precise 3 wire oil pressure sensor
Pressure range (0 - 150 PSI / 0 - 10 Bar)
Thread: 1/8" NPT
Comes with a connector and a 1.8 meter length cable

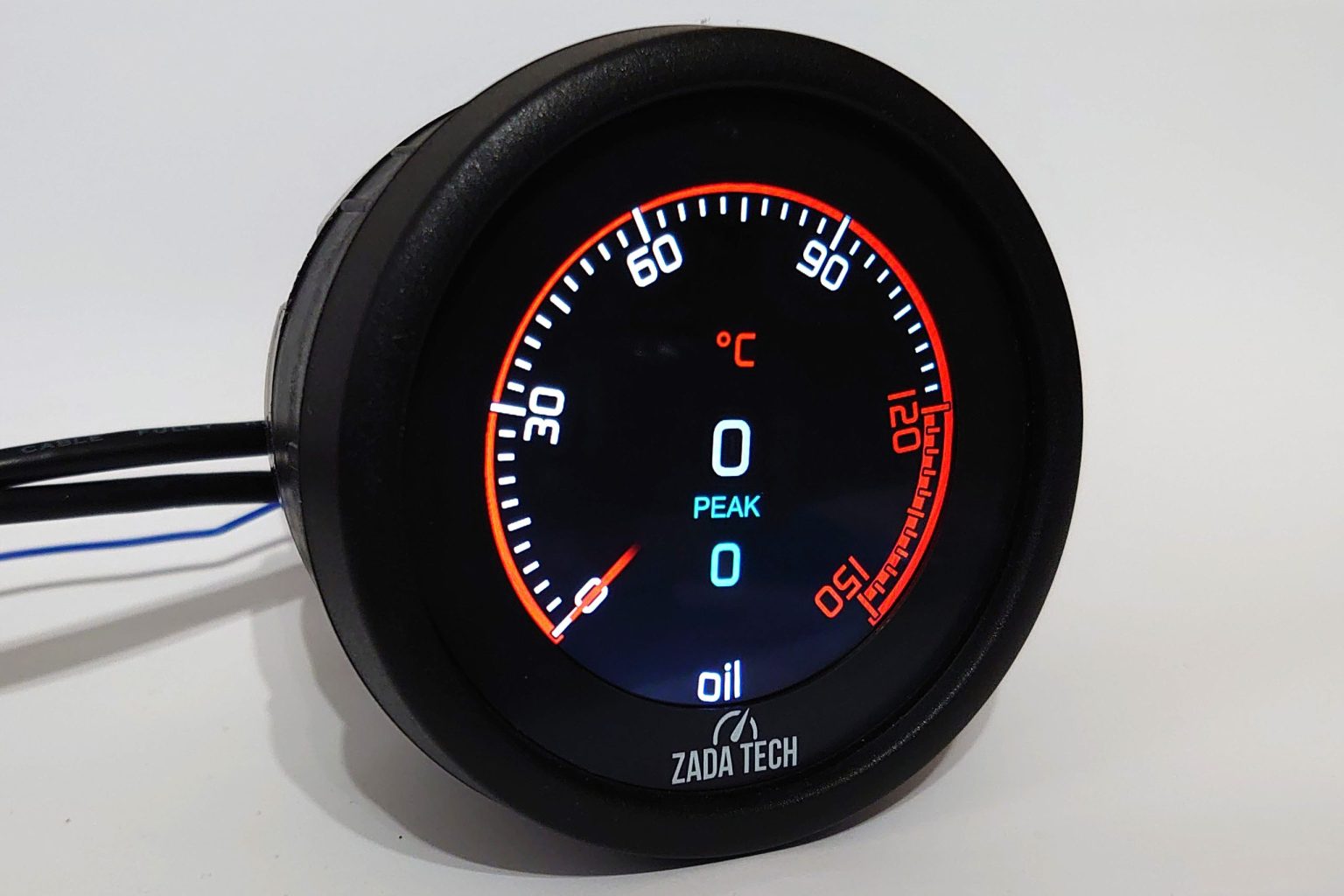

- Oil temperature sensor (°C or °F)
High quality precise 2 wire sensor
Temperature range (0 - 150°C / 32 - 302°F)
Thread: 1/8" NPT

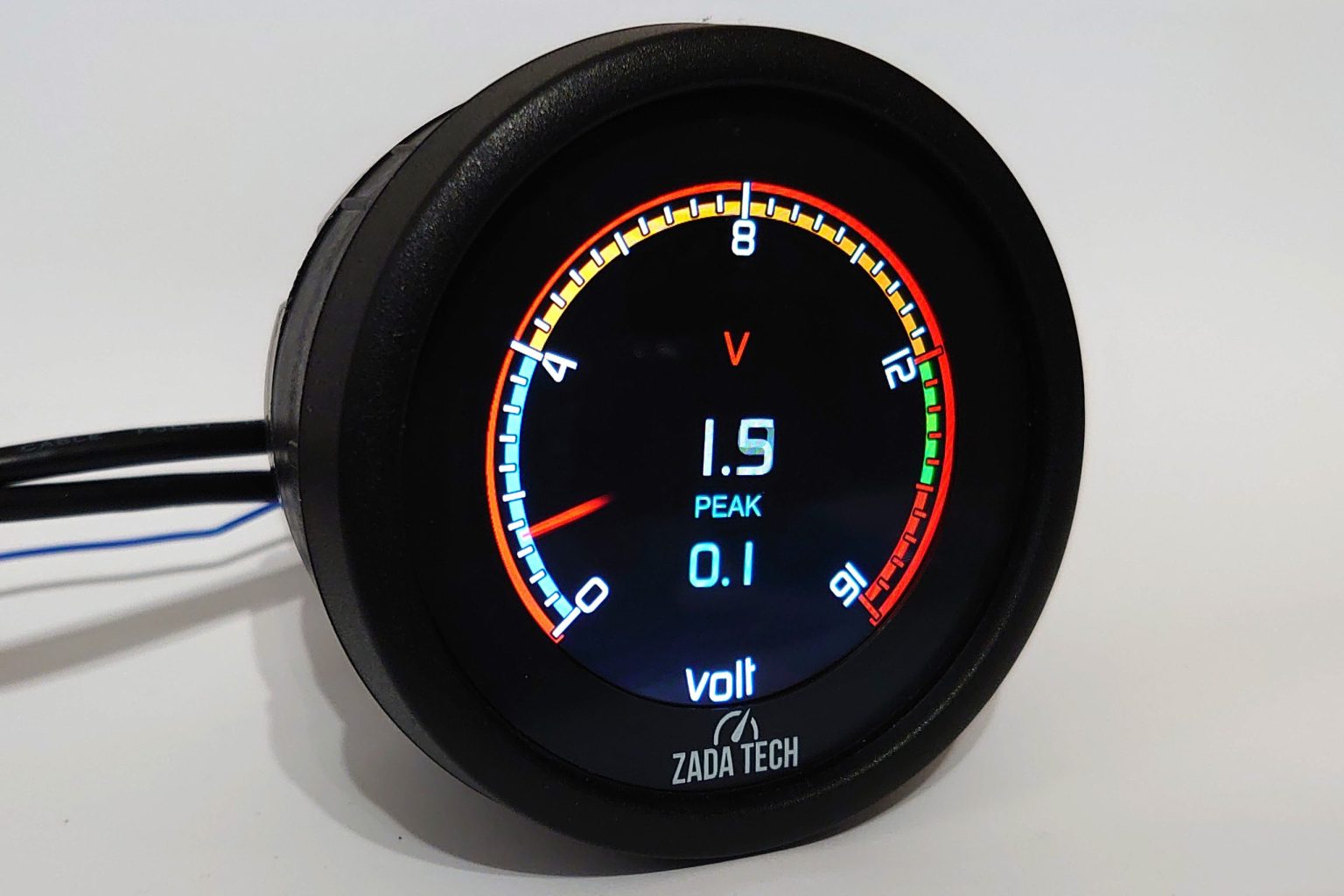

- Volts input
The kit and sensors come with 1 year warranty.
This kit is also CAN Bus compatible. It can be customised to work with your aftermarket ECU with CAN Bus.
