9.1" Full colour ultrawide TFT graphical LCD multi gauge kit with sensors

Zada Tech's 9.1" full colour ultrawide TFT LCD multi gauge. A digital gauge system incorporating the newest technology including IPS LCD for richer colours and enhanced viewing.

The LCD multi gauge works by connecting the Zada Tech controller box to the LCD via an HDMI connection, enabling smoother graphics with more accurate readings. The IPS LCD provides brighter colours, better contrast and backlight viewing luminosity as well as 180 degree viewing angle.

The system displays on-screen peak value settings for easy access. Peak values can be individually set for each reading. An integrated warning system has been designed so that the needle changes to red when the peak value is reached, proving you with a rapid alert notification. Also included is a bright red LED warning light.

This Zada Tech full colour gauge incorporates the most accurate and responsive readings using a superior display. Each gauge can be customised to any look by the user before placing the order, we will the do the rest for you. Don't forget to tell us the units of each readings whether it's bar, PSI, degree Centigrade (°C) or degree Fahrenheit (°F).

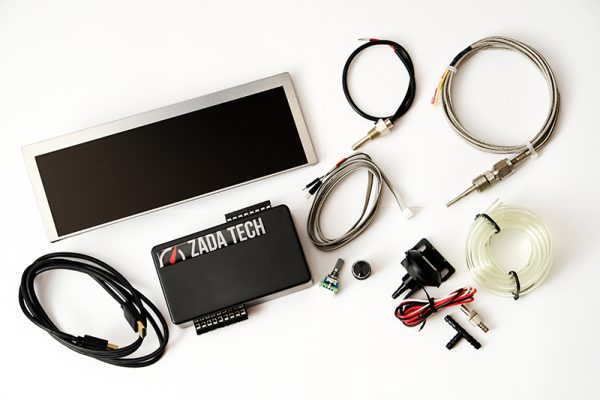

The kit includes the following:

- 9.1" LCD, controller box including the joystick.

- Boost sensor (PSI or BAR)
High quality precise 3 wire boost pressure sensor
Pressure range (-30 In.Hg. to 44 PSI / -1 Bar to 3 Bar)
Comes complete with a hose connection boost pipe, filter and a t-piece
Made In JAPAN!

-EGT sensor (°C or °F)
High quality precise EGT sensor
Temperature range (up to 1200°C / 32 - 2192°F)
Thread: 1/8" NPT

- Transmission temperature sensor (°C or °F)
High quality precise 2 wire sensor
Temperature range (up to 150°C / 302°F)
Thread: 1/8" NPT

This kit is especially recommended and suitable for Nissan vehicles with a diesel engine.

The kit and sensors come with 1 year warranty.

Check out the dimensions of the 9.1" LCD screen
