Zada Tech OBDII multi gauge system for Double DIN (2 DIN) headunits
Zada Tech OBDII multi gauge system, suitable for cars manufacture after 2009, compatible with any double DIN head unit.
The controller box is equipped with an OBDII hardware, to read the most useful parameters from your car. It also comes with ports for external sensors to be fitted as optional extras for extra readings from your car engine.
The system is plug and play, the OBDII cable connects to the OBDII connector on your car. To show the gauges, the AV or HDMI cable connects to your double DIN headunit, to the HDMI or AV video input.

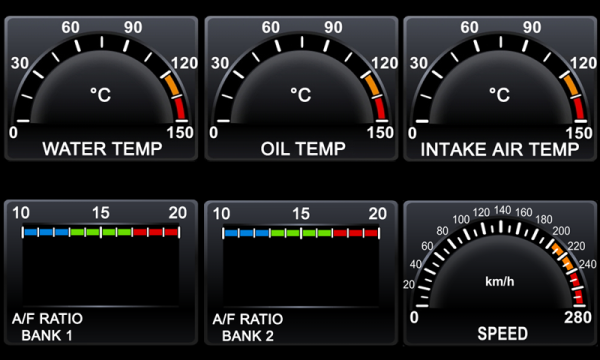

The system makes use of a rotary joystick, supplied standard with the kit, to enable the user to swap between the different pages of readings. Six readings can be displayed on screen at once, with the option to scroll to further readings using this joystick.
If your vehicle is turbocharged, the kit is also ready, with the boost sensor input, to measure the boost pressure.
We can do any graphics interface design to match your existing dials if required.
The kit contains:
- Main controller box, input port for the OBDII and multiple input ports for the sensors.
- OBDII cable.
- HDMI or AV cable.
- Joystick.
- Fuse holder with 2A fuse.
The OBDII values obtained from the car are:
- Water Temperature (°C/°F)
- Advance Timing (°)
- O2 Status Bank 1
- O2 Status Bank 2
- RPM
- Throttle Position (%)
- Speed (kmph/mph)
- Intake Air Temperature (°C/°F)
- Air Fuel Bank 1
- Air Fuel Bank 2
- Trouble codes
The optional extra sensor readings you can have are:
- Boost (PSI/BAR)
- Oil pressure (PSI/BAR)
- Fuel pressure (PSI/BAR)
- EGT (°C/°F)
- Oil temperature (°C/°F)
- Gearbox temperature (°C/°F)
- Differential temperature (°C/°F)
- Air Fuel Ratio (AFR)
The kit and sensors come with 1 year warranty.
