- LED warning light £10.00
- Warning alarm buzzer £15.00
- Zada Tech Wideband AFR (Air Fuel Ratio) Controller with Bosch ADV Sensor £190.00
- Fuel Temperature Sensor £15.00
- Exhaust Manifold Pressure Sensor £55.00
- Interior Temperature Sensor £25.00
- Water Temperature Sensor £15.00
- OBDII CAN bus hardware with cable £150.00
- Throttle Position Sensor (TPS) £50.00
- Intercooler Air Temperature Sensor £35.00
- Joystick Large Knob £8.00
- Zada Tech AFR (Air Fuel Ratio) Wideband Controller Functionality £20.00
- Oil Pressure Sensor £55.00
- Air Lift or Air Suspension Pressure Sensor £55.00
- Gearbox Oil Temperature Sensor £15.00
- Exhaust Gas Temperature (EGT) K-Type thermocouple probe sensor £60.00
- Outside Temperature Sensor £25.00
- Differential Oil Temperature Sensor £15.00
- Oil Temperature Sensor £15.00
- Fuel Pressure Sensor £55.00
- Intake Air Temperature Sensor £35.00
- Transmission Oil Temperature Sensor £15.00
- Boost (MAP) Pressure Sensor £55.00
- Clock and Date Functionality Gauge Intergration £35.00

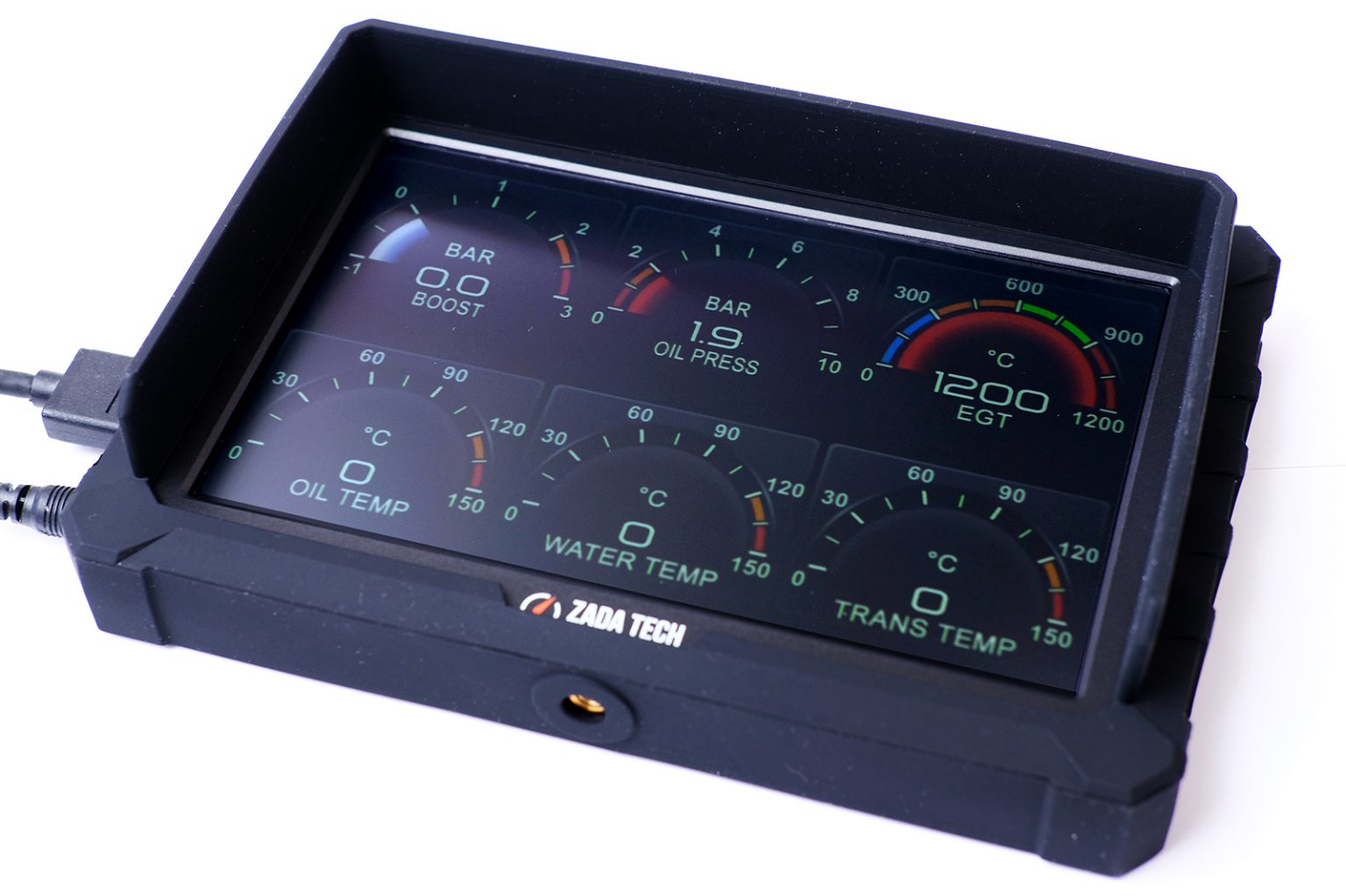

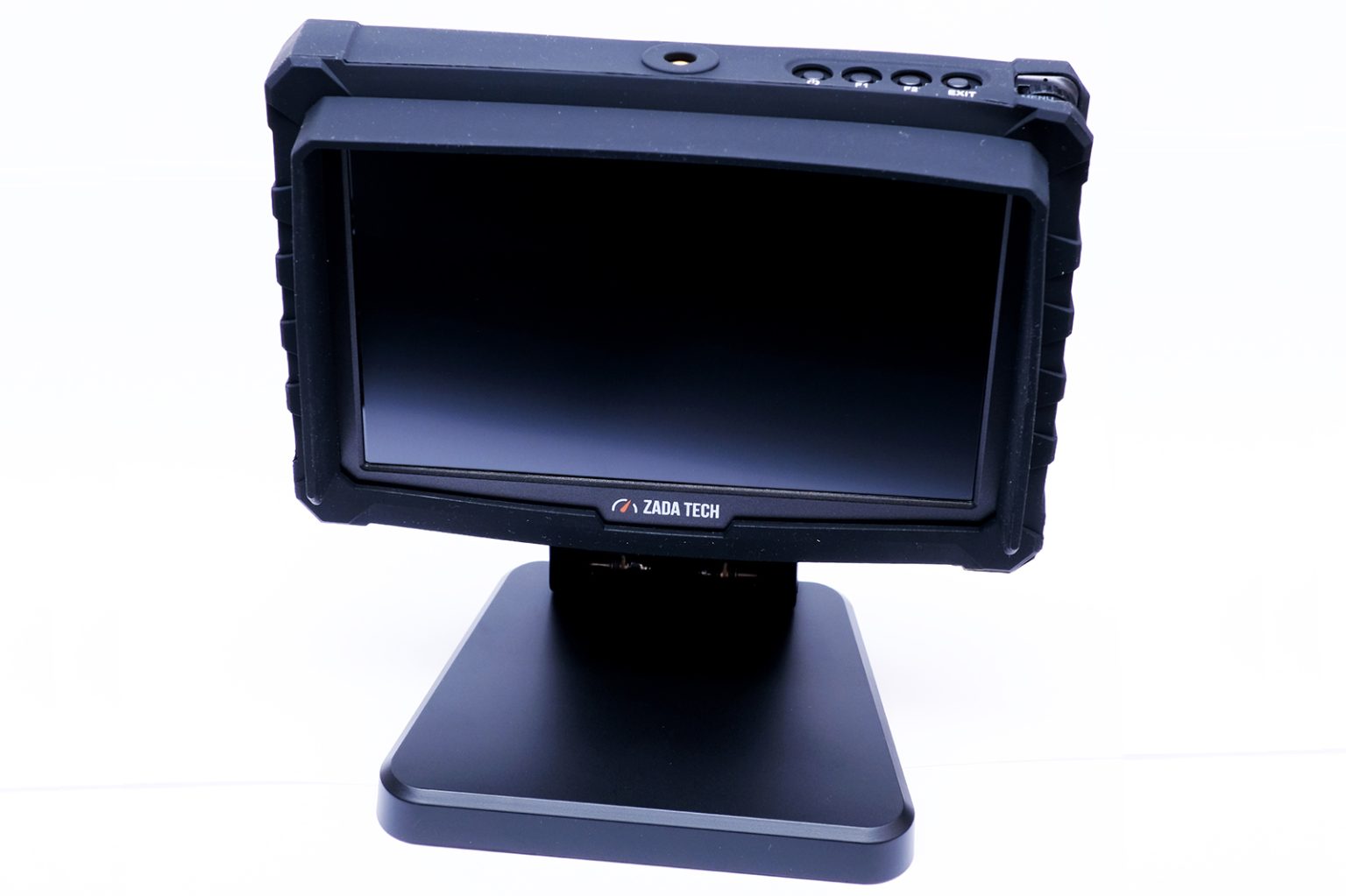

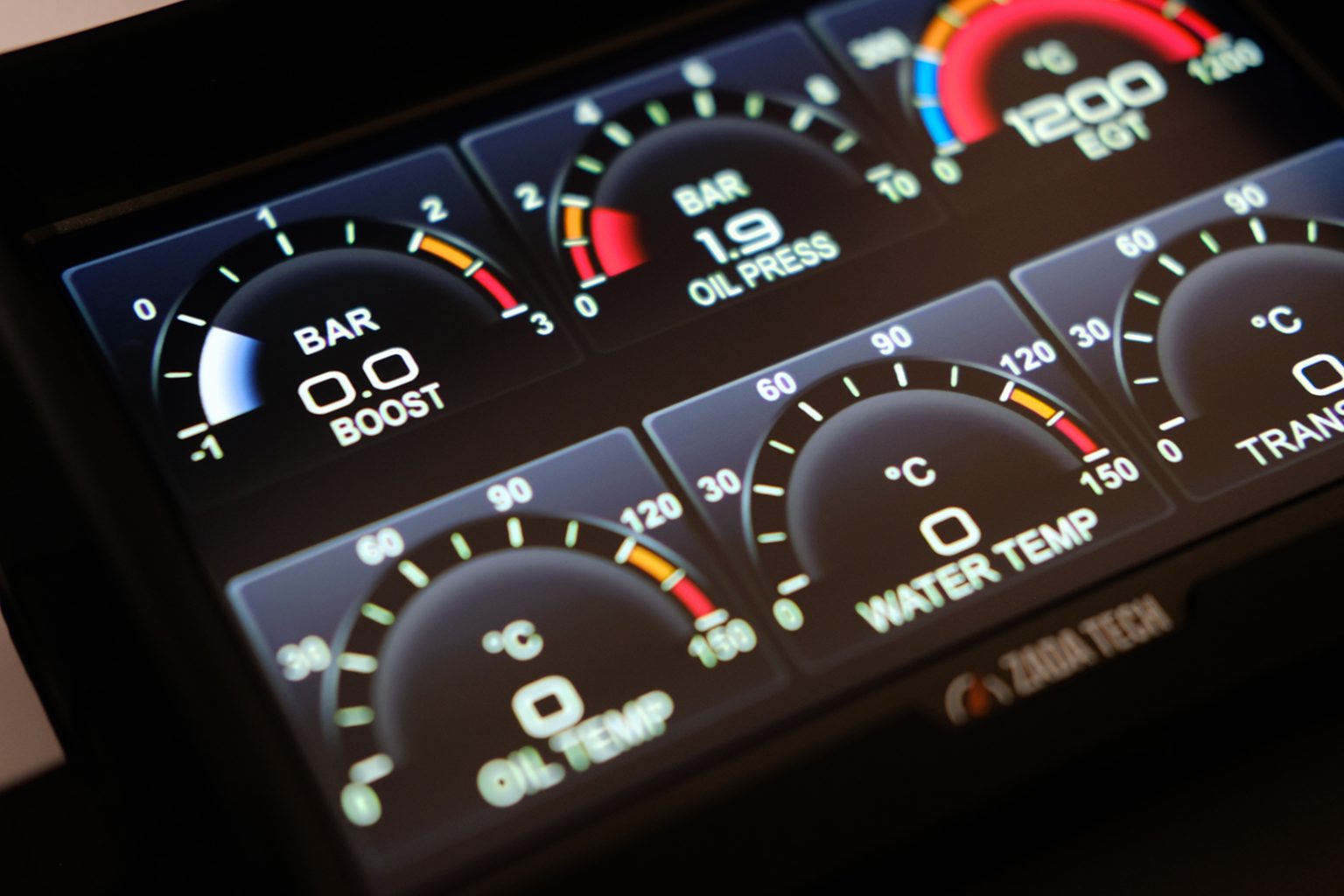

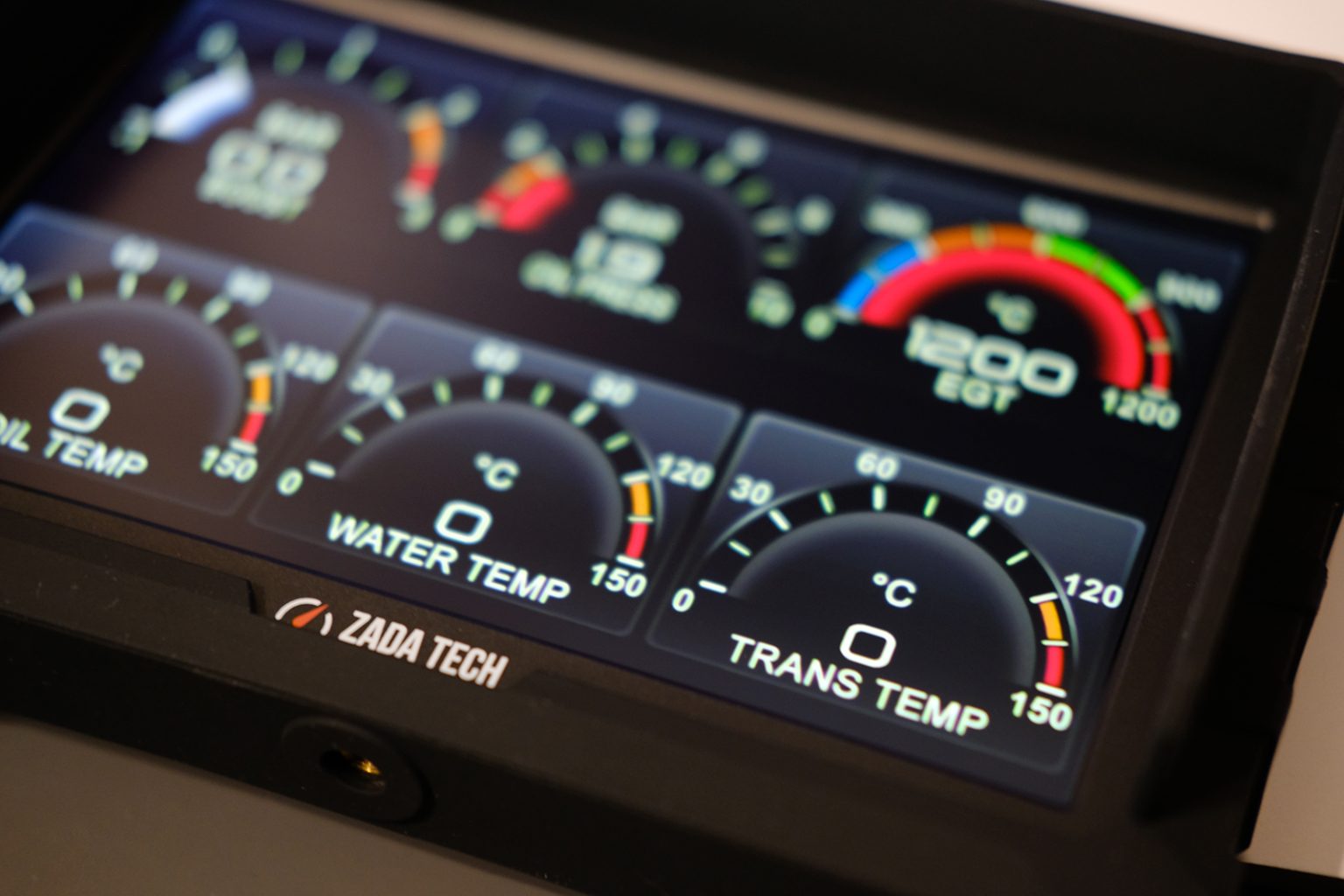

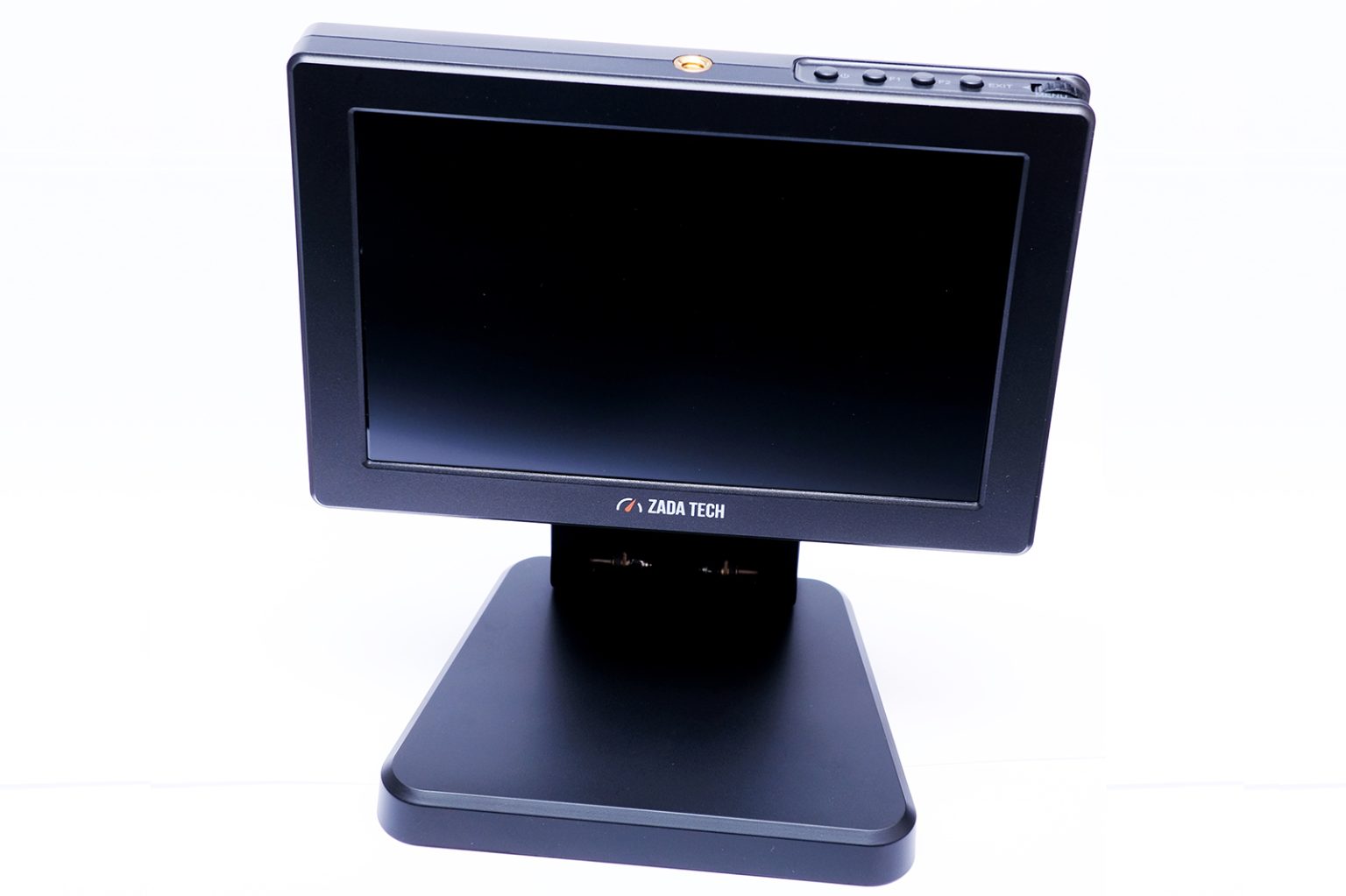

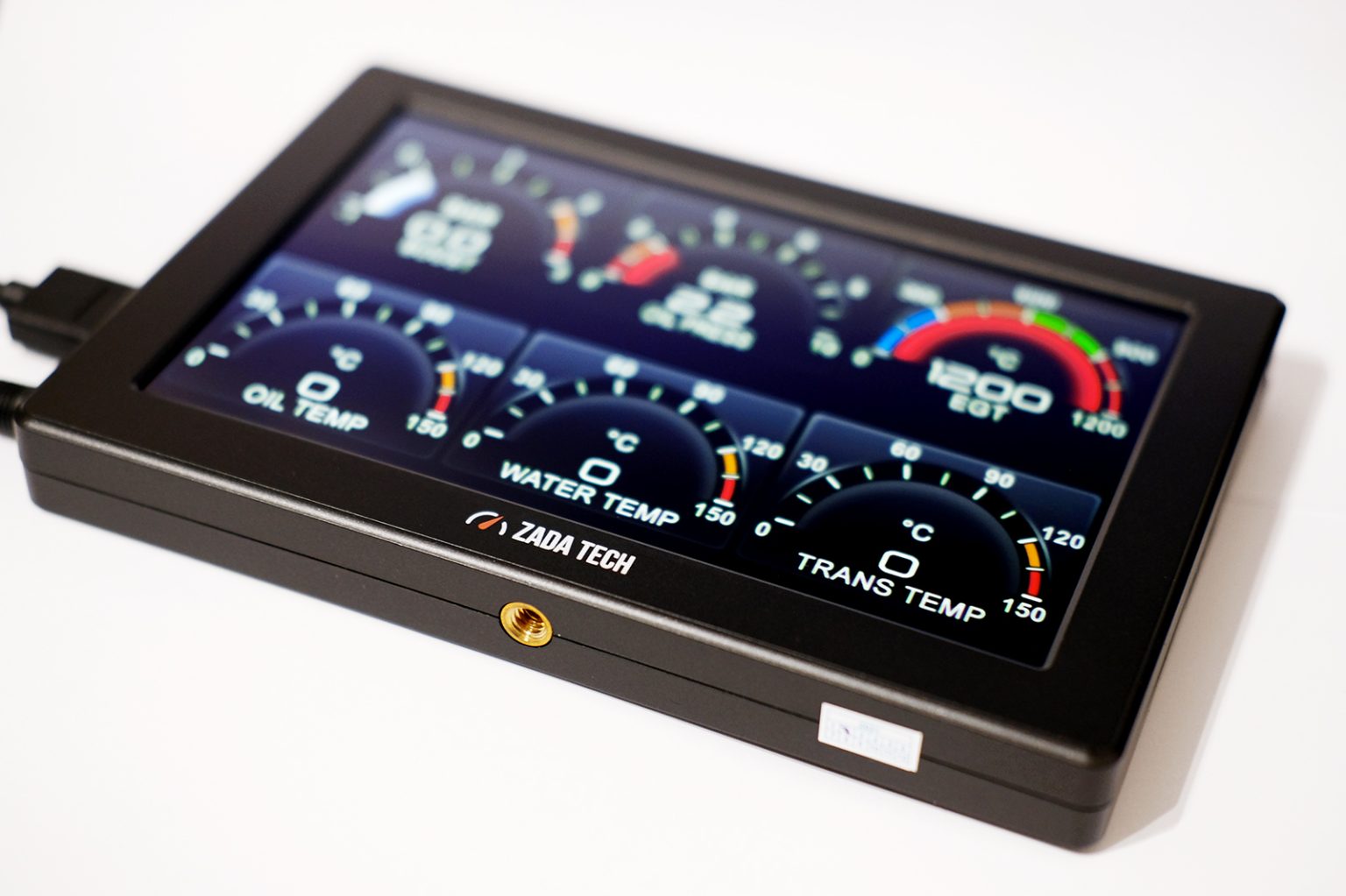

7" Full colour Tough TFT IPS graphical LCD cased multi gauge
Zada Tech's 7" full colour TFT LCD multi gauge cased and tough. A digital gauge system incorporating the newest technology including IPS LCD for richer colours and enhanced viewing.
Comes complete with sun visor and a mounting bracket.
The LCD multi gauge works by connecting the Zada Tech controller box to the LCD via an HDMI connection, enabling smoother graphics with more accurate readings. The IPS LCD provides brighter colours, better contrast and backlight viewing luminosity as well as 180 degree viewing angle.
Up to 16 readings can be obtained from the car by using external sensors. The gauge makes use of a rotary joystick (comes standard with the kit) to enable the user to swap between the different modes and readings. Six readings can be displayed on screen at once, with the option to scroll to further readings using the joystick. Choose between two different types of joystick knobs, small and large.
The IPS LCD displays on-screen peak value settings for easy access. Peak values can be individually set for each reading. Worried about your peak value? An integrated warning system has been designed so that the needle changes to red when the peak value is reached, proving you with a rapid alert notification.
This Zada Tech full colour gauge incorporates the most accurate and responsive readings using a superior display. Each gauge can be customised to any look by the user before placing the order, we will the do the rest for you. Don't forget to tell us the units of each readings whether it's bar, PSI, degree Centigrade (°C) or degree Fahrenheit (°F).
Do you want to use your digital multi gauge to control your car components as well as monitor? Then this unit can be programmed to keep an eye on temperatures to start your radiator fan on low speed or high speed! Very useful when on track days.
Please do refer to the list on the right for the sensors that this gauge supports including the prices.
Furthermore, if your car benefits from an OBDII port with CAN bus, you can order the Zada Tech OBDII CAN bus reader. Fully integrated into the controller box it enables you to make use of the already installed sensors on your car to avoid installation of extra sensors into the engine bay again. Not all readings could be available on OBDII, so you can still have external sensors alongside OBDII readings.
Does your car already have an LCD display? Then check out our other Zada Tech controller box! This provides you with the same monitoring and controlling multi gauge system, with up to 16 readings and peak value control. It is also suitable for cars with a double DIN (2 DIN) head unit. The controller box has an HDMI output, and just like the full kit, it comes with a joystick for optimum functionality.
Check out the video on the right to see the 7” multi gauge in action.
The kit and sensors come with 1 year warranty.
