£175.00

Zada Tech Wideband AFR (Air Fuel Ratio) Controller with Bosch LSU 4.9 Sensor

Zada Tech AFR (Air Fuel Ratio) Wideband controller with Bosch LSU 4.9 sensor.

This is Zada Tech’s own AFR Wideband controller with a 0-5v signal output for any gauge. Also perfect for datalogging, engine management systems or racing applications where a gauge is not necessarily desired. Simple wiring and installation, very compact. If a gauge is needed simply connect to any Wideband AFR gauge or our OLED single AFR guage.

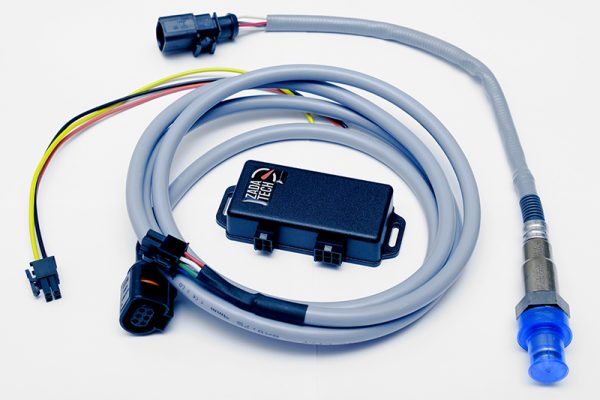

Comes complete with a Bosch LSU 4.9 Wideband AFR sensor and the connector with 1.8 metres of wiring, plus all the other required connection

– Never requires free-air calibration!

– Very accurate and fast.

– Very compact, fits anywhere.

– Analog Output: 0V to 5V suitable for any ECU or gauge.

– AFR Range: 0V @ 7.4 AFR linear to 5V @ 22.39 AFR.

We can also integrate this AFR controller into our controller box of our wide range of gauges. If this is needed just choose it as an option and let us know.

PLEASE NOTE: The O2 sensor would need to be mounted and installed by a professional. Replacement of the sensor is only accepted if it is in unused condition.

PRODUCT INSTRUCTIONS MANUAL
