£150.00
Add ons & Sensors:

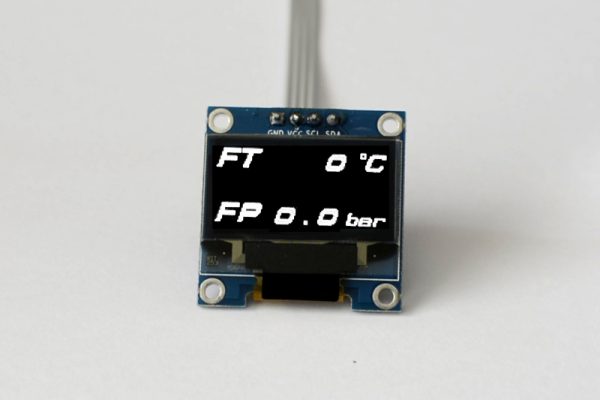

OLED 1.3" digital fuel pressure and fuel temperature multi gauge

This is our smallest and yet most affordable OLED multi gauge that we have ever designed and produced.

Designed on a 1.3" OLED screen makes it very small, yet visible. it can be mounted almost anywhere. Fully sun-readable and wide viewing angle.

Comes in both PSI/BAR, degree Celsius/Fahrenheit units. Please tell us which unit you prefer at the time of order.

The kit includes the following:

- 1.3" OLED screen and controller box

- Fuel pressure sensor (PSI or BAR)
High quality precise 3 wire oil pressure sensor
Pressure range (0 - 150 PSI / 0 - 10 Bar)
Thread: 1/8" NPT
Comes with a connector and a 1.8 meter length cable

- Fuel temperature sensor (°C or °F)
High quality precise 2 wire sensor
Temperature range (up to 150°C / 302°F)
Thread: 1/8" NPT

PRODUCT INSTRUCTIONS MANUAL

Check out the dimensions of the 1.3" OLED screen
