- Fuel Pressure Sensor £55.00
- Intake Air Temperature Sensor 3/8" NPT £35.00
- Differential Oil Temperature Sensor £15.00
- LED warning light £10.00
- Exhaust Gas Temperature (EGT) K-Type thermocouple probe sensor £60.00
- Water Temperature Sensor £15.00
- Interior Temperature Sensor £25.00
- Oil Temperature Sensor £15.00
- Zada Tech AFR (Air Fuel Ratio) Wideband Controller Functionality £20.00
- Transmission Oil Temperature Sensor £15.00
- Fuel Temperature Sensor £15.00
- Intake Air Temperature Sensor £35.00
- Throttle Position Sensor (TPS) £50.00
- Intercooler Air Temperature Sensor £35.00
- Joystick Large Knob £8.00
- Air Lift or Air Suspension Pressure Sensor £55.00
- Exhaust Manifold Pressure Sensor £55.00
- Boost (MAP) Pressure Sensor £55.00
- Gearbox Oil Temperature Sensor £15.00
- Oil Pressure Sensor £55.00
- Intercooler Air Temperature Sensor 3/8" NPT £35.00
- Outside Temperature Sensor £25.00
- Combined Oil Fuel Pressure and Temperature Sensor M10 x 1mm Thread £55.00
- Warning alarm buzzer £15.00
Nissan Skyline GTR R32 / R33 / R34 CAN bus Multi Function Gauge Display
Nissan Skyline GTR CAN bus multi function gauge display and pod. Featuring a standard and a racing theme.
Compatible with most aftermarket ECUs with CAN bus. Can be used on R32, R33 Dash but requires customisation of your dashboard. This is an exact copy of the R34 MFD pod. Can also be modified by the end user for installation in other chassis such as 240SX and RX7. The kit can also be supplied without the pod if needed for a reduced price, since it does work on almost any car.
The system is capable of holding the peak values, until the next time it is restarted. You can set peak values (by using the joystick), the needles will change to red when a peak value is reached.
As well as CAN bus we can incorporate our sensors within the system as extras. Please refer to the list on the right for the sensors that this system supports.

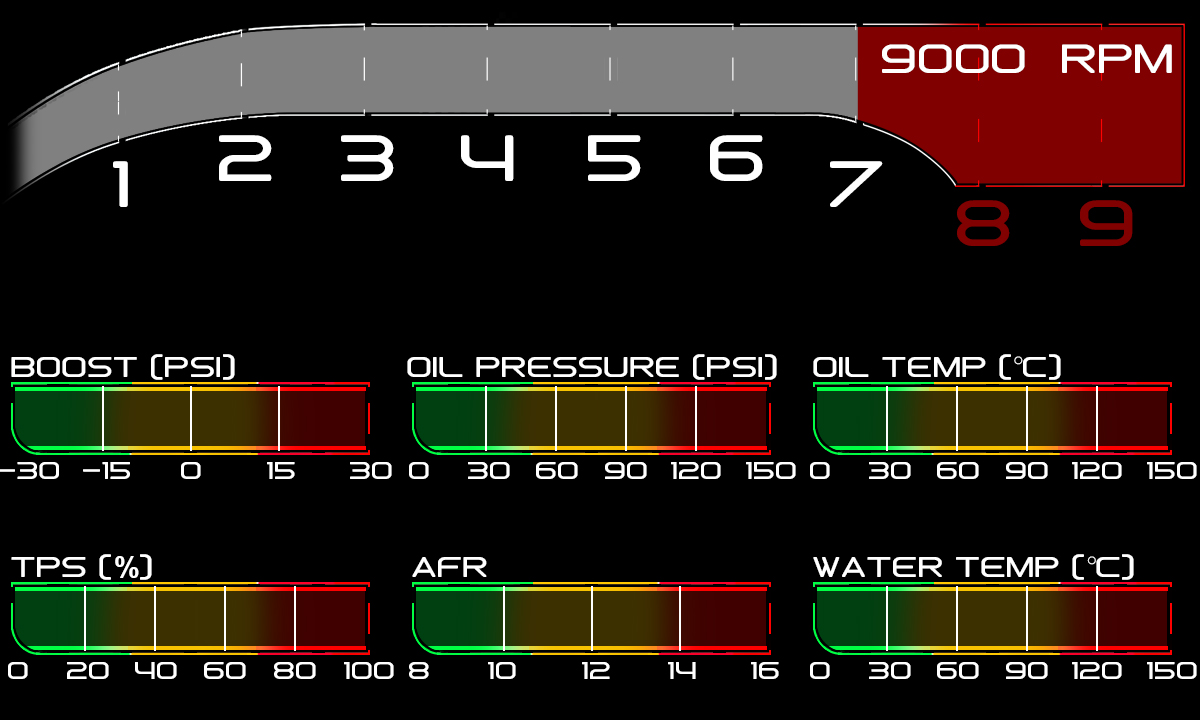

Graphical interface default values are set to the following, however we can add more readings if needed:
- Boost, oil pressure, oil temperature, RPM, Throttle Position, Air Fuel Ratio (AFR), water temperature, volts
The kit includes the following:
- 7" IPS LCD and the controller box including the joystick. With reverse camera function
- Pod for the LCD screen
- Joystick and knob (used to switch between pages and setting the peak value warning).
- Dedicated CAN Bus ports.
The kit and sensors come with 1 year warranty.
