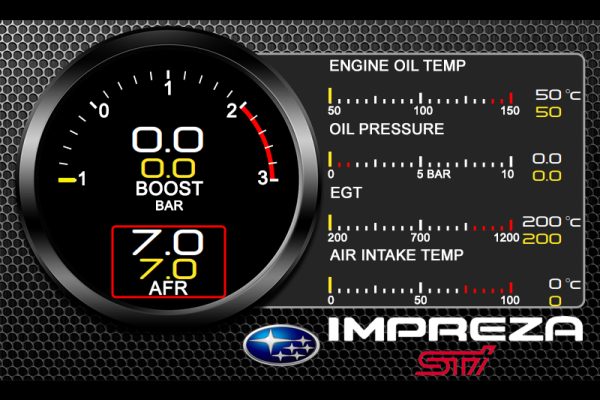

Subaru Impreza STI Multi Function Gauge Display for Double DIN with HDMI

Subaru Impreza STI multi Function gauge display for double DIN with HDMI port.

This complete kit comes with the most popular sensors, you would ever need. Can be used on any double DIN head unit with an HDMI port. Also available with AV/RCA analog output.

The system is capable of holding the peak values, until the next time it is restarted. You can set peak values (by using the joystick), the needles will change to red when a peak value is reached.

The kit includes the following:

- The controller box including the joystick.

- Boost sensor (PSI or BAR)
High quality precise 3 wire boost pressure sensor
Pressure range (-30 In.Hg. to 44 PSI / -1 Bar to 3 Bar)
Comes complete with a hose connection boost pipe, filter and a t-piece
Made In JAPAN!

- AFR controller and sensor
Never requires free-air calibration!
AFR Range: 8 to 16 AFR

- Oil temperature sensor (°C or °F)
High quality precise 2 wire sensor
Temperature range (up to 150°C / 302°F)
Thread: 1/8" NPT

- Oil pressure sensor (PSI or BAR)
High quality precise 3 wire oil pressure sensor
Pressure range (0 - 150 PSI / 0 - 10 Bar)
Thread: 1/8" NPT
Comes with a connector and a 1.8 meter length cable

-EGT sensor (°C or °F)
High quality precise EGT sensor
Temperature range (up to 1200°C / 32 - 2192°F)
Thread: 1/8" NPT

- Air intake temperature sensor (°C or °F)
High quality precise 2 wire sensor
Temperature range (0 - 100°C / 32 - 212°F)

The kit and sensors come with 1 year warranty.
