Nissan Skyline GTR R32 / R33 / R34 Multi Function Gauge Display for Double DIN head unit

Nissan Skyline GTR R32 / R33 / R34 multi function gauge display for double DIN head units.

This complete kit comes with the most popular sensors, you would ever need. It is compatible with any double DIN head unit with HDMI or AV video input. Suitable for the cars that already have a head unit installed in the car and don't want to loose the OEM MFD, or don't have the MFD at all.

We also supply a kit with the pod and screen, to fit where your OEM MFD is mounted . This could be found here

On the first page you would get all the gauges apart from the volts. On the second page you would get the volts. The pages are switchable using the joystick supplied.

The system is capable of holding the peak values, until the next time it is restarted. You can set peak values (by using the joystick), the needles will change to red when a peak value is reached.

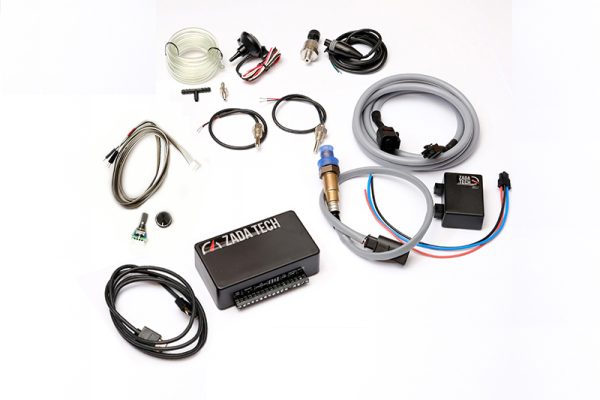

The kit includes the following:

- The controller box including the joystick.

- Boost sensor (PSI or BAR)
High quality precise 3 wire boost pressure sensor
Pressure range (-30 In.Hg. to 44 PSI / -1 Bar to 3 Bar)
Comes complete with a hose connection boost pipe, filter and a t-piece
Made In JAPAN!

- RPM/Tacho hardware input
Tap into factory ECU wire

- Throttle Position Sensor (TPS) input
Tap into factory sensor wire

- Water temperature sensor (°C or °F)
High quality precise 2 wire sensor
Temperature range (0 - 150°C / 32 - 302°F)
Thread: 1/8" NPT

- Oil pressure sensor (PSI or BAR)
High quality precise 3 wire oil pressure sensor
Pressure range (0 - 150 PSI / 0 - 10 Bar)
Thread: 1/8" NPT
Comes with a connector and a 1.8 meter length cable

- Oil temperature sensor (°C or °F)
High quality precise 2 wire sensor
Temperature range (0 - 150°C / 32 - 302°F)
Thread: 1/8" NPT

- AFR controller and sensor
Never requires free-air calibration!
AFR Range: 8 to 16 AFR

- Volts input

The kit and sensors come with 1 year warranty.
